Cost Effective Veterinary Solutions....
ECONOCAGE TM
Cage Component Systems
THE LOW COST, RELOCATEABLE CAGE COMPONENT SYSTEM


EconocageTM modular components are relocateable and install in less
space and at lower cost than comparable concrete block construction.

Each aluminum/poly divider allows an extra 4" of space compared to block walls.

Northgate's unique P-StopTM floor barrier blocks contamination between Econocage stalls.


This photo shows the P-stopTM barrier between the Econocage frame and the concrete floor.

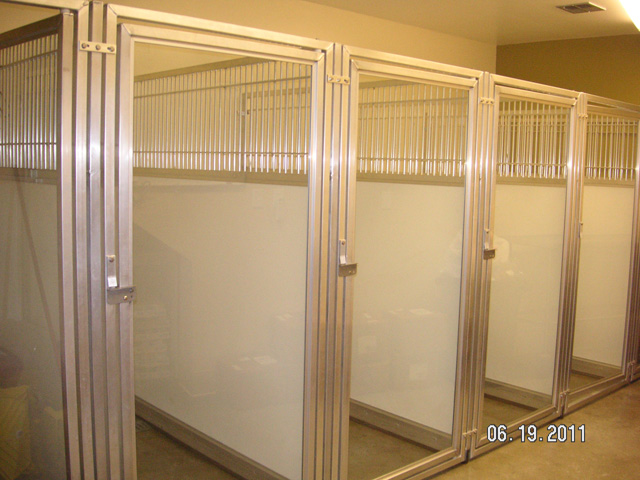

Econocages with glass door

Northgate's unique P-StopTM floor barrier blocks contamination between Econocage stalls. Reverse channel beneath cage side slips over polyethelene bar anchored to floor slope, leveling the side. The barrier is impervious to urine, stain or odor-producing bacteria.

STANDARD COMPONENT PACKAGE
1 preassembled divider includes P-Stop channel;
P-Stop potty floor barrier;
1 gate w/frame. (see NOTES') Custom sizes available
OVERALL DIVIDER HEIGHT
71 in. (aluminum grill: 19 1/2 in.
Framed side panel: 49 1/2 in. P-Stop channel: 2in.)

The Econocage system is especially suited for installation on concrete floors with gutters. Modular components are relocateable and install in less space and at lower cost than comparable concrete block construction. Side panels are preassembled aluminum-rod grids above metal-framed polyethelene panels. Doors are a choice of metal-framed GlasDor safety glass or aluminum-rod gates.

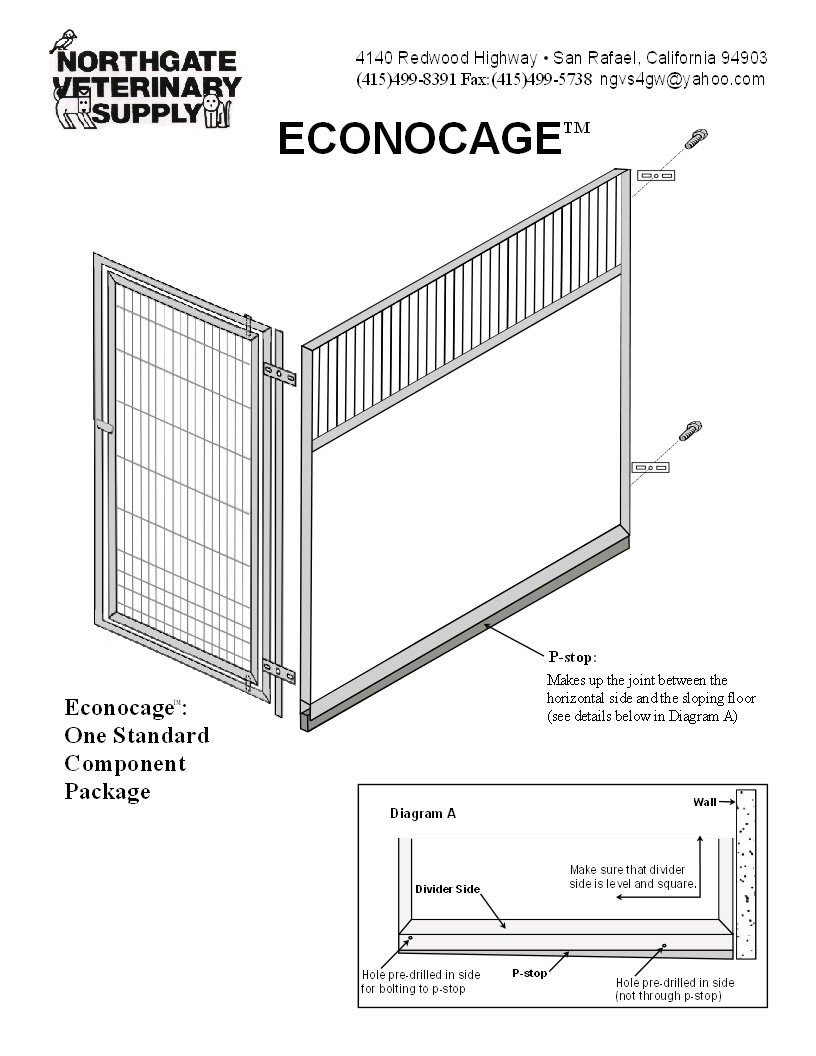

The Simplicity of ECONOCAGE Installation
1. High-density polyethelene P-Stop TM bar anchors to floor. Aluminum channel at bottom of cage side slips over P-Stop barrier bar, allowing cage side to set up level.
2. Preassembled cage side (divider) anchors to wall with
aluminum tabs. Sides are .25" poly sheet framed in 1.25"
square aluminum tubing, surmounted by a grill of aluminum rods.
3. Aluminum rod and frame gate is reversible, can be swung left or right, in or out.

ECONOCAGE STANDARD SIZES AND COSTS
The three standard Econocage sizes are suitable for most veterinary hospitals.
The 2-1/2x4' size is ideal for cats and dogs to 50 lbs.
The 3x5' size accommodates most other animals while the 4x6' size can accommodate two large dogs.

                          Run Length

Run Width

4 ft.



5 ft.



6 ft.

Custom Sizes

2.5 ft.

Call for price Call for price Call for price

Call with

3.0 ft.

Call for price Call for price Call for price

dimensions

4.0 ft.

Call for price Call for price Call for price

for prices

HiDryTM Floor Panels
Please call for a price quote.

NOTES: Additional divider may be needed for row end. Floor panel sizes are one inch shorter
and narrower than nominal length/width shown F.O.B. factory, freight collect.
Add $39 Crating per glas dor option. Prices subject to change without notice.
Custom sizes are available
